Hi, I'm Mitch Fincher and these pages are from a talk I gave while a Civil Engineering student at Texas Tech University.

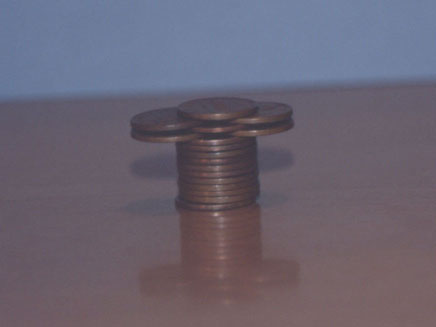

The following is the basic pattern for building cantilevered structures with Pennies. Although it looks trivial, we can build amazing structures with these pillars. All penny columns are ten pennies high, a "stack". Two side-by-side pennies held in place by a penny above them is called a "triad". Below is a stack with two triads resting on top.


triad of pennies

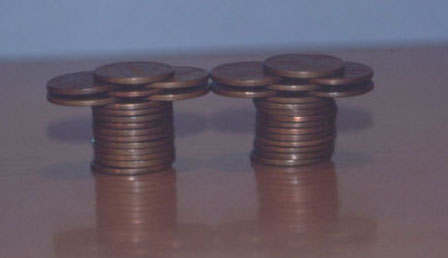

Now, I'll show you how to build a simple bridge. Duplicate the above structure and slide them together.
two triads of pennies

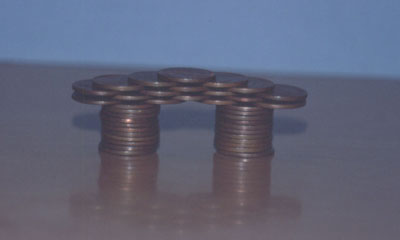

Carefully filling the space between with pennies, we create a one penny-span bridge.
penny bridge

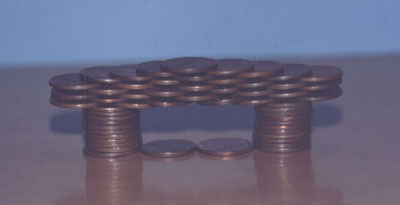

Repeating the process by putting an extra triad on top of each stack, we can create a two penny-span bridge.
penny bridge

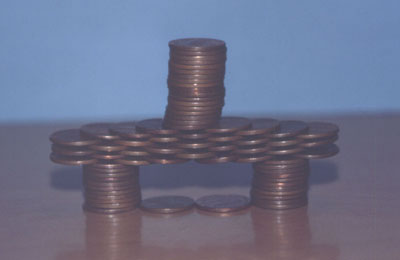

Although it looks weak, it will actually hold quite a bit of weight. Remember no glue or adhesive is used; only the compression weight of the pennies hold the structures together.
strong penny bridge

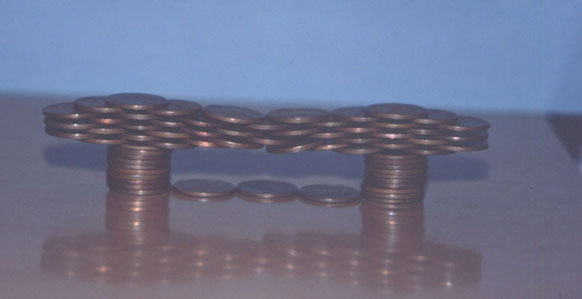

We can move on to a three penny-span bridge.
big penny bridge

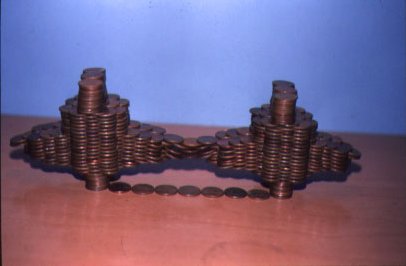

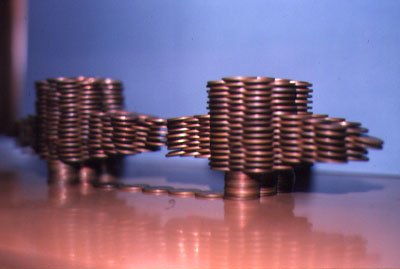

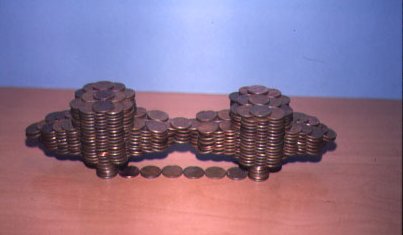

And finally to six and seven penny-span bridges. These are highly effective study-avoidance mechanisms.

really big penny bridge

really big penny bridge

really big penny bridge

Click "Next" to move on to "The Big Tower".
